1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Фирменное наименование: | TTIFIBER |
| Сертификация: | CE/ROHS/ISO9001 |
| Номер модели: | волокно |
Оплата и доставка Условия:
| Количество мин заказа: | Договоренно |
|---|---|
| Цена: | обсуждаемый |
| Упаковывая детали: | Сумка для физкультуры |
| Время доставки: | 60 рабочих дней |
| Условия оплаты: | T/T. |
| Поставка способности: | 20000pcs/день |
|
Подробная информация |
|||
| Название продукта: | волокно | Обмен: | 1.25 / 2.5mm |
|---|---|---|---|
| Материал: | Керамика | Тип разъема: | SC /LC /ST /FC |
| Основной тип: | SingleMode / Multimode | Упаковка: | Сумка для физкультуры |
| Выделить: | 1.25mm ceramic ferrule for LC connector,2.5mm SM MM fiber optic ferrule,ceramic ferrule with flange for SC connector |
||
Характер продукции
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
Specification
- Outer diameter: (1.2499±0.0005)mm
- Inner diameter: (0.125+0.001/-0)mm
- Concentricity: 1.0μm
- Insertion loss: ≤0.2dB
- Return loss: ≥60dB
- Length: (6.50±0.05)mm
Brief Introduction
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Material
- Ferrule: Zirconia Ceramic
- Flange: Ni-Plated Cu
Features
- Good compatibility
- Accurate mechanical dimensions
- Good reliability and stability
- Compliant with RoHS, Bellcore, IEC
Application
- Telecommunication
- CATV
- LAN (including FTTx)
- Data network
Detailed Specification
| Parameter | Single Mode | Multi Mode |
|---|---|---|
| Outside Diameter | Ø2.4990 | |
| OD Tolerance | ±0.0005 | ±0.001 |
| Inner Diameter | Ø0.125 | |
| ID Tolerance | +0.001/0 | +0.004/0 |
| Ferrule Length | 10.5±0.05 | 10.5+0.05/-0.1 |
| Concentricity | ≤0.001 | ≤0.004 |
| End Curve Radius | 15+10/-5 | |

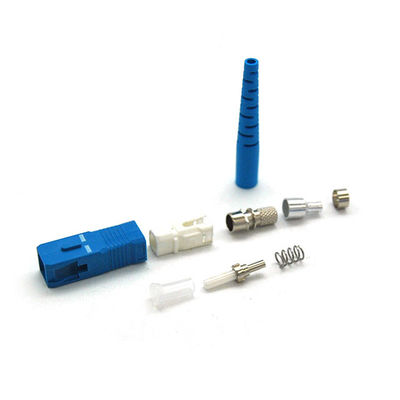

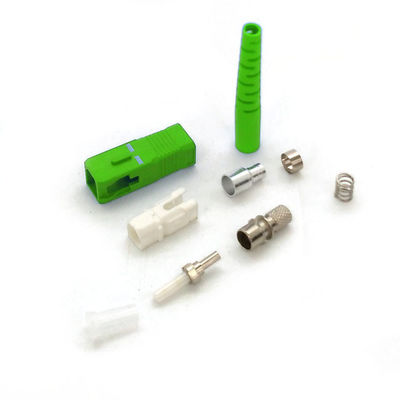

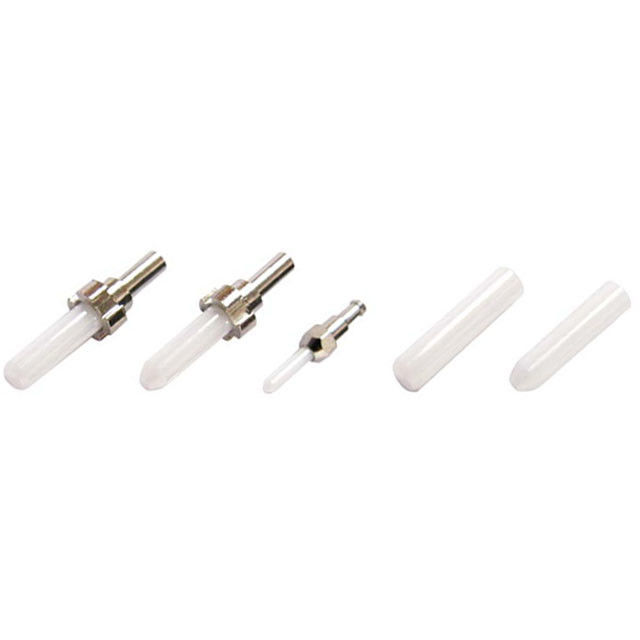

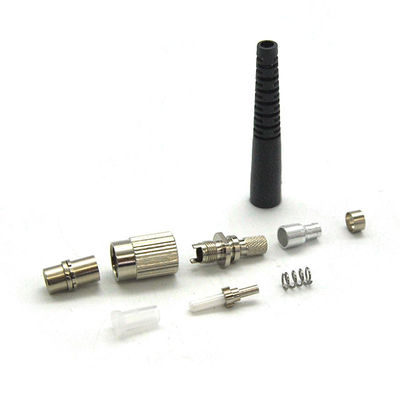

Product Pictures
